2x USB-A 3.0 sockets for connecting devices such as speakers and cameras.
HDMI:
HDMI 2.0 for connecting display or projector.
Wifi (management only):
2.4GHz, 802.11 n
Ethernet (management only):
RJ45, 100Mbit/s, Full-duplex
Functionality
USB-C Video In
Alt-Mode Display-Port 1.1 to 1.4 2 or 4 lanes (configurable). Max bandwith 32 Gbit/s Up to HDR3
HDMI Video Out
HDMI 2.0b. HDCP 1.4 and 2.3. Max 18 Gbit/s output.
2 DP Lane mode: DP1.2 = 4K30Hz, DP 1.4 = 4K60Hz.
4 DP Lane mode: DP 1.2 = 4K60Hz.
USB Pass-through
2 DP Lane mode: USB 2.0 LS/FS/HS & USB 3.1, SS/5 Gbit/s.
4 DP Lane mode: USB 2.0 LS/FS/HS Charging USB-C: 5V/3A, 9V/3A, 12V/3A, 15V/3A, 19,5V/5A, 20V/5A
Measurements and weights

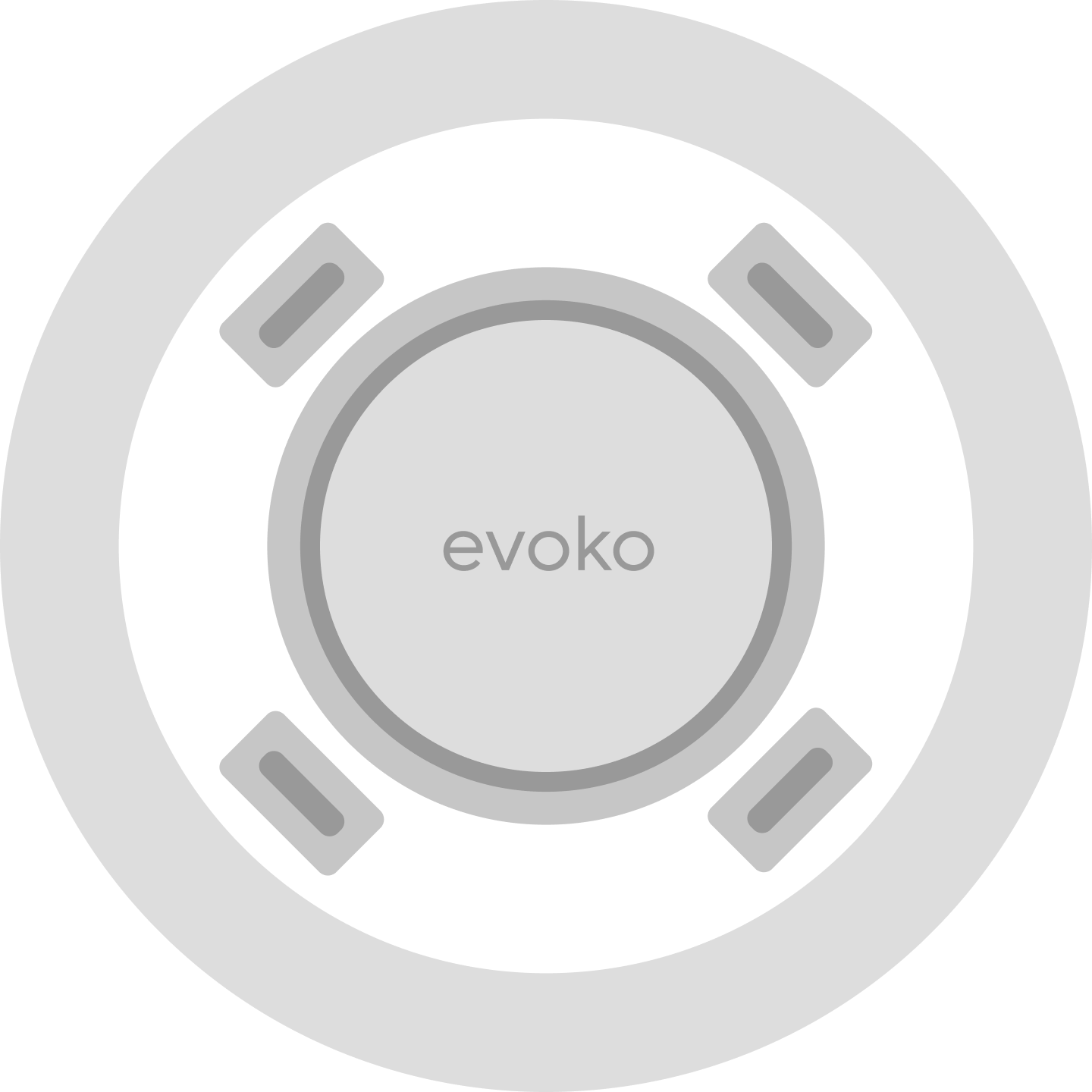

Main unit
Width:
83 mm (3.3 inches)
Height:
20 mm (0.8 inches)
Depth:
83 mm (3.3 inches)
Cable:
Up to 1m cable above table

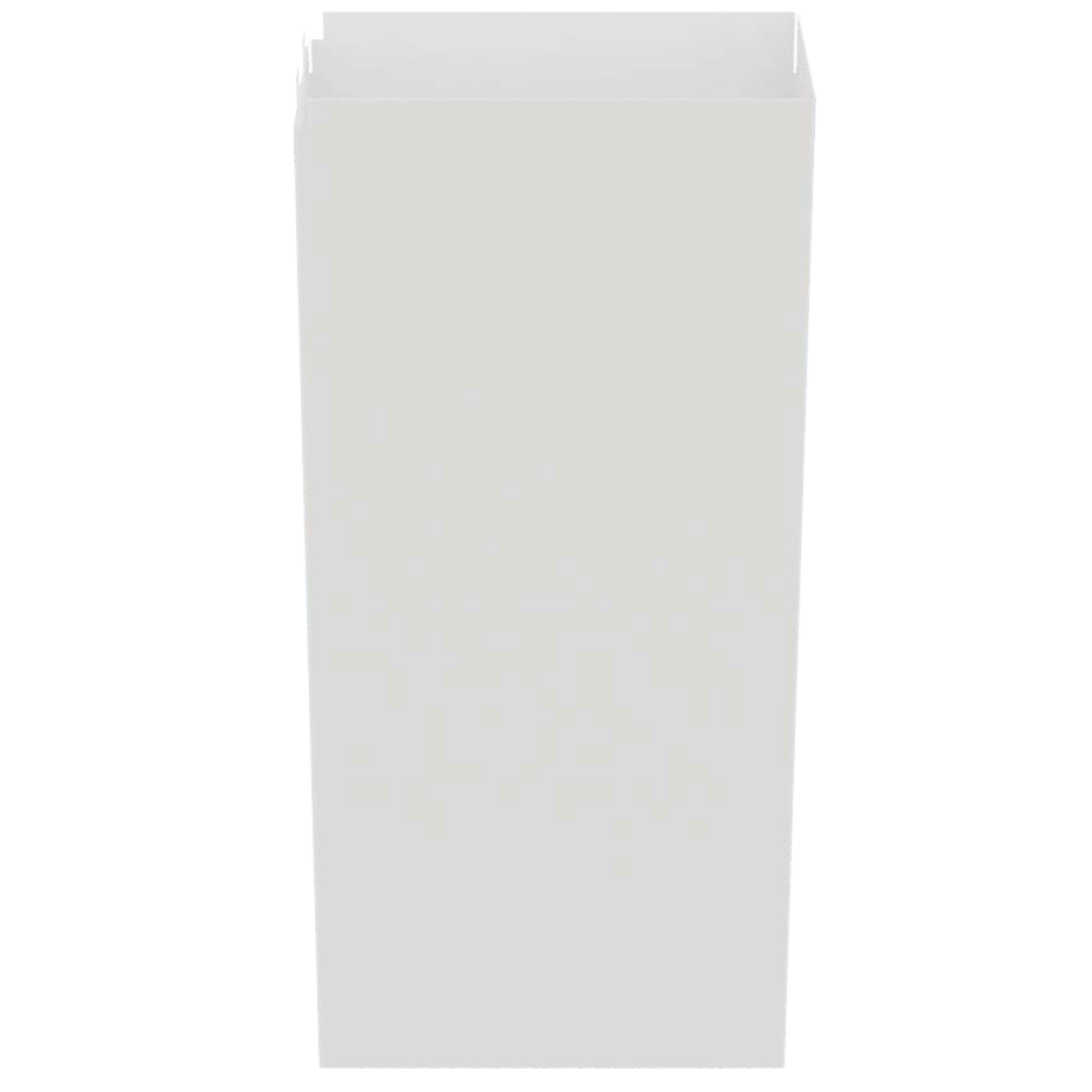

Cable bag
Width:
130 mm (5.1 inches)
Height:
650 mm (25.6 inches)
Depth:
230 mm (9.1 inches)
Retail sales kit package
Width:
310 mm (12.2 inches)
Height:
290 mm (11.4 inches)
Depth:
120 mm (4.7 inches)
Weight:
4 kg (8.82 lbs)
Software
EasyConnect management console, PC application.
In room or pre-installation management of the EasyConnect MPX 200.
Setup Ethernet or Wifi for FW-updates and online management.
Choose between different setups such as BYOD, integrated MTR or PC-based MTR.
Choose screws or other fastening hardware depending on table material.
Table thickness: 5 – 45 mm.
For the controller and cable outlet a ø75mm hole is required in the table.
