We believe that great design is when simplicity meets functionality at a point of minimalism where everything you need is available. This digital room booking system gets rid of double bookings, confusion on where to go and meetings that get interrupted.
This digital room booking system gets rid of double bookings, confusion on where to go and meetings that get interrupted.

A room manager that covers everything from basic booking to an extensive range of functions. It’s placed outside each bookable meeting room, conference room and other bookable areas.

award-winning design

cloud hosted

Easy installation without need to setup local servers. Updates are installed easily thanks to the cloud.

scalable solution

Adapt the solution to your needs, add more sophisticated features with extended room booking.

Small icons represent the room’s equipment.
Easily find available time slots
Intuitive lighting system with three status color
Book a meeting directly from the screen.

See room status at a glance

The Guava app is compatible with iPad for easy setup and quick deploy- ment, and can easily be customized for your brand.

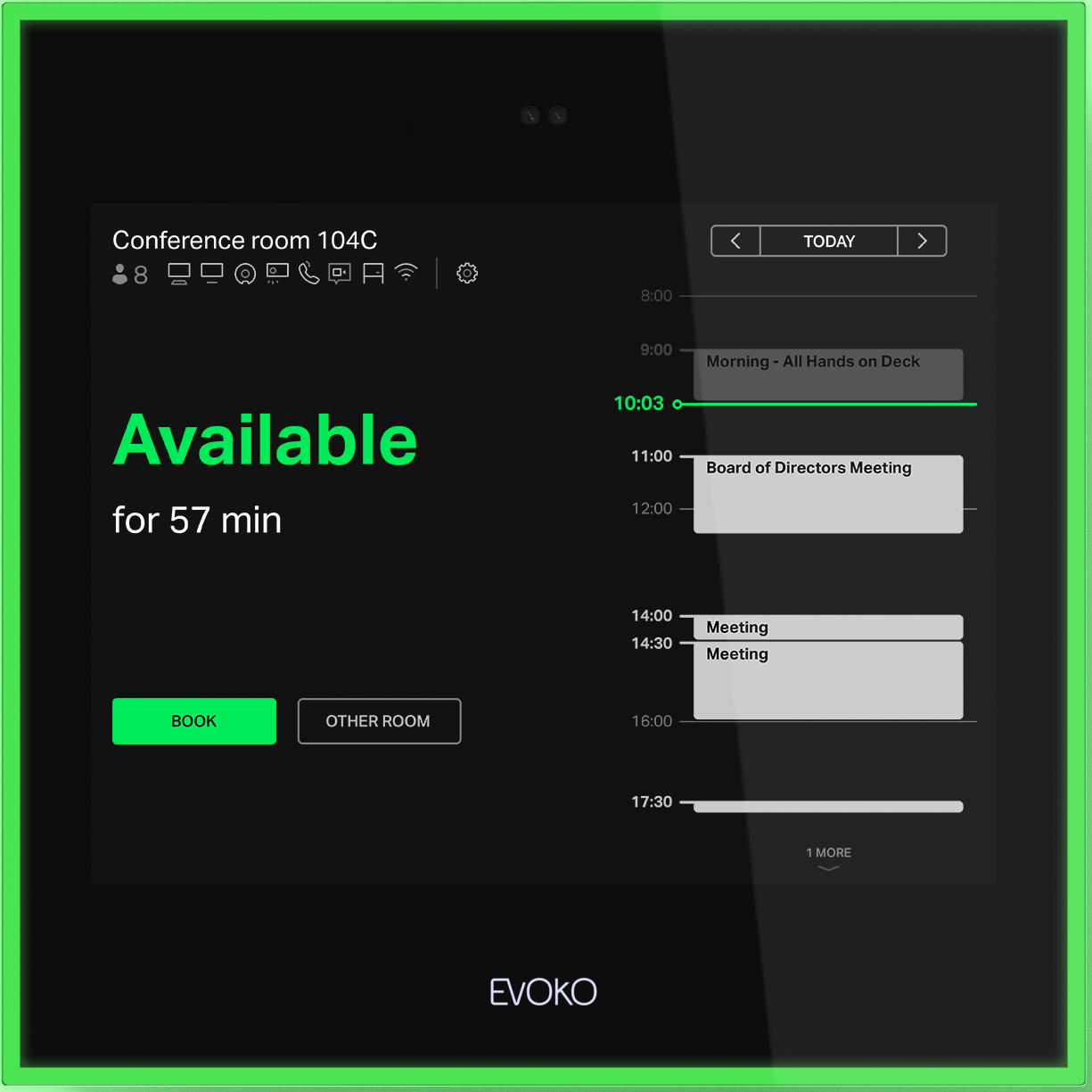

Green light indicate that the room is available for more than 10 minutes.
Yellow light indicate that a meeting is
about to start within 10 minutes
and/or the room requires check-in.

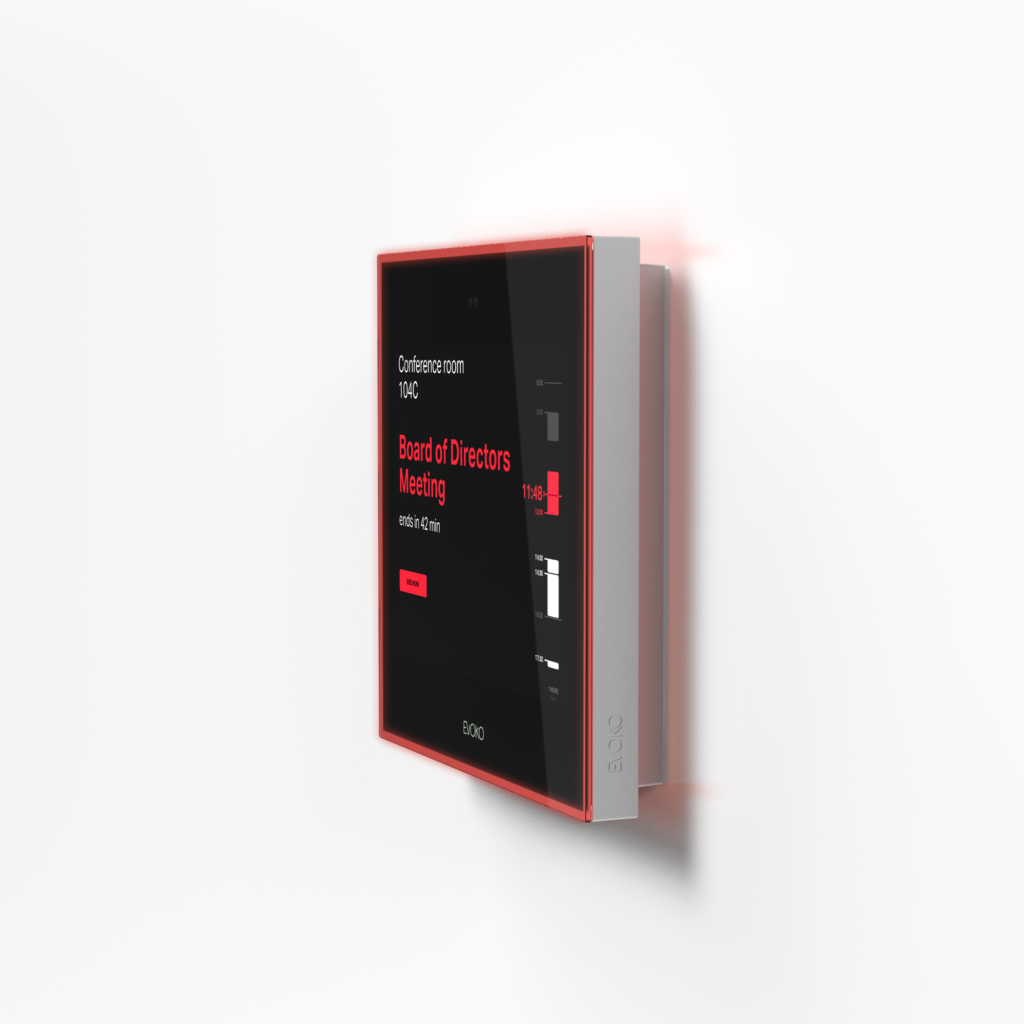

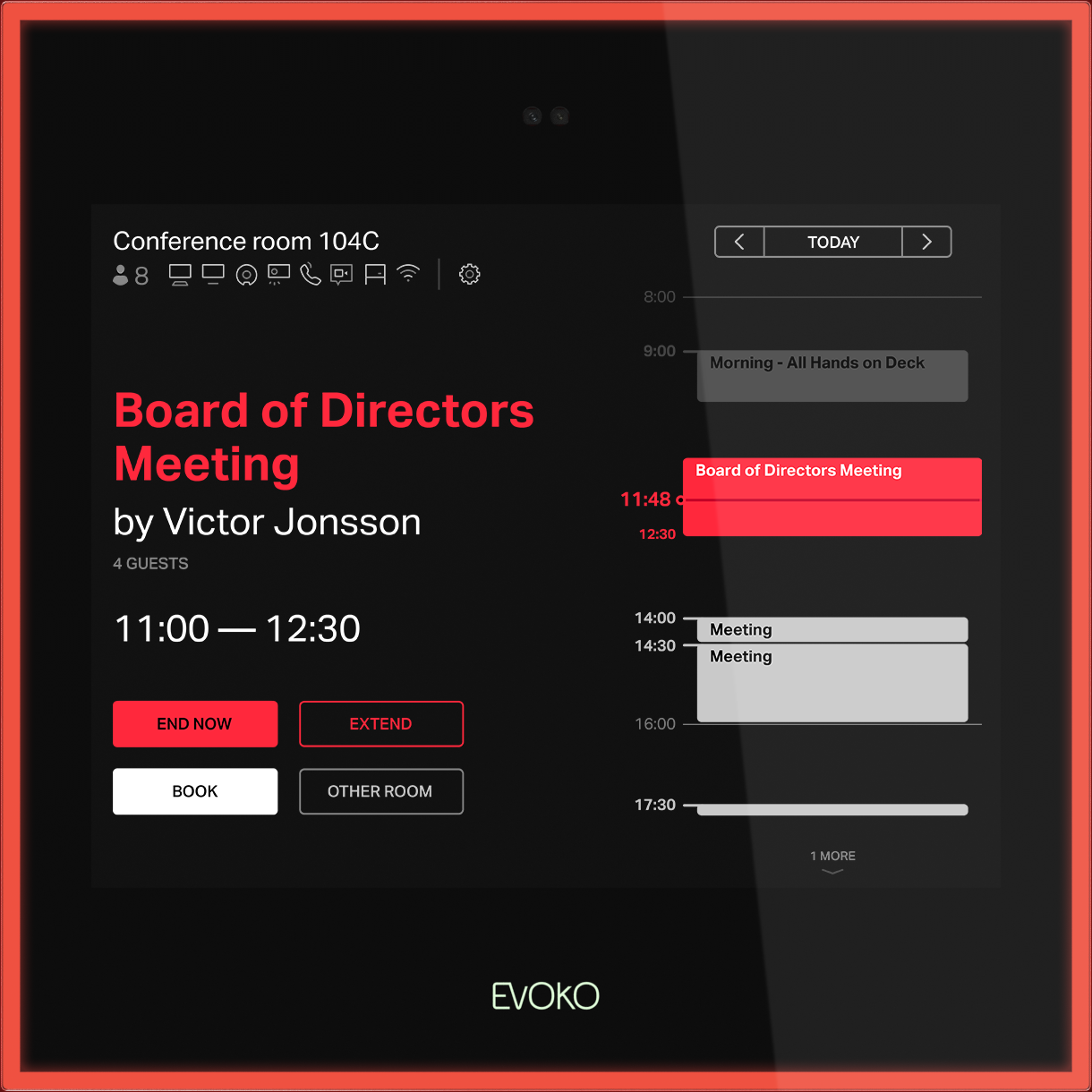

Red light indicate that
the room is occupied.

see room status at a glance

Evoko Naso rocks our trademark intuitive light signals to guide you to the right room and clearly see the room status from a distance.

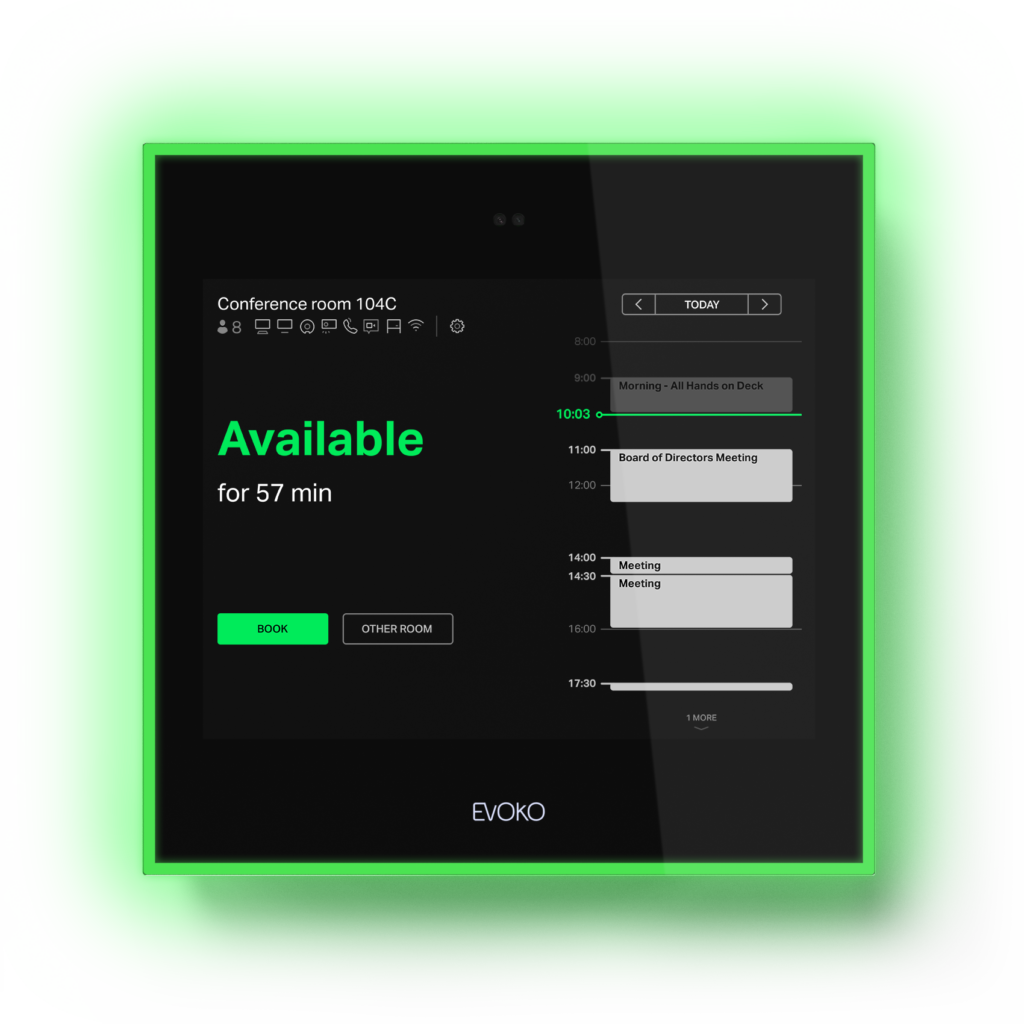

Green light indicate that the room is available for more than 10 minutes.

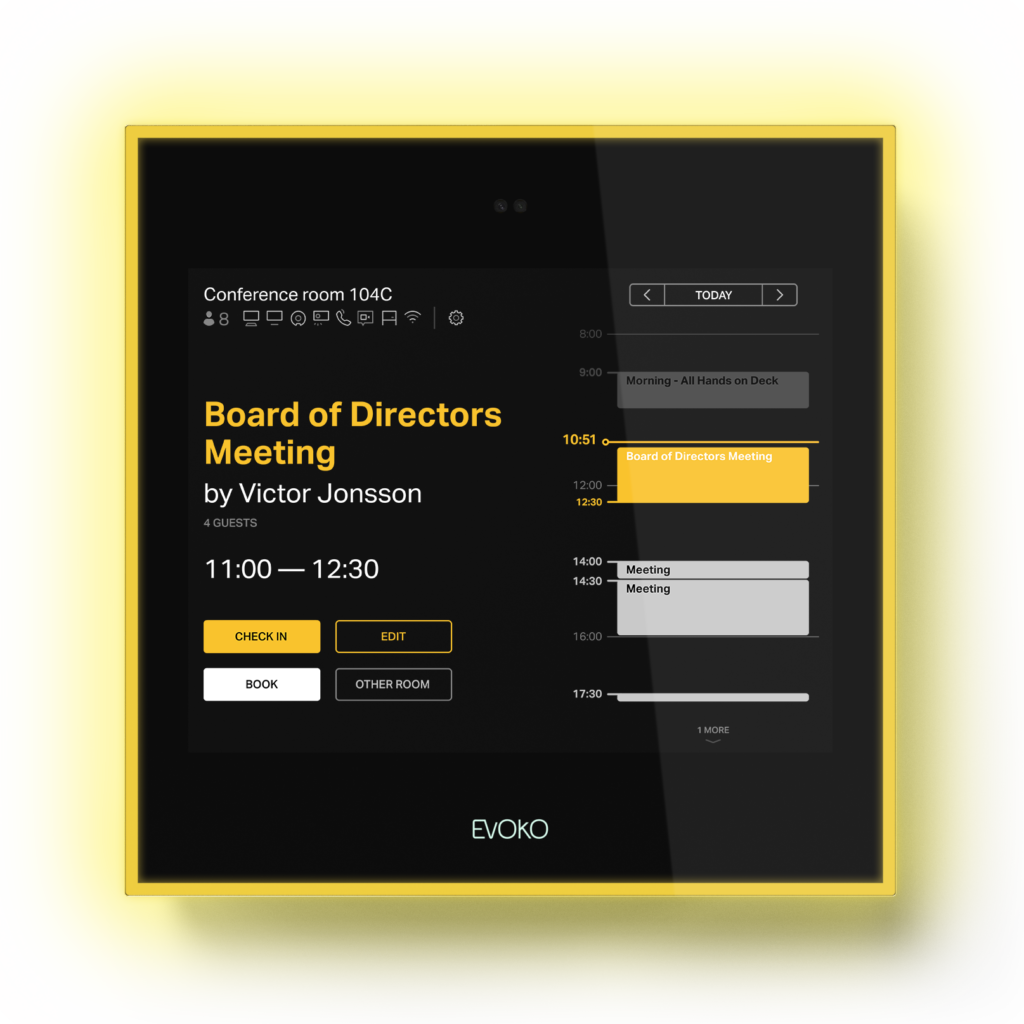

Yellow light indicate that a meeting is about to start within 10 minutes and/or the room requires check-in.

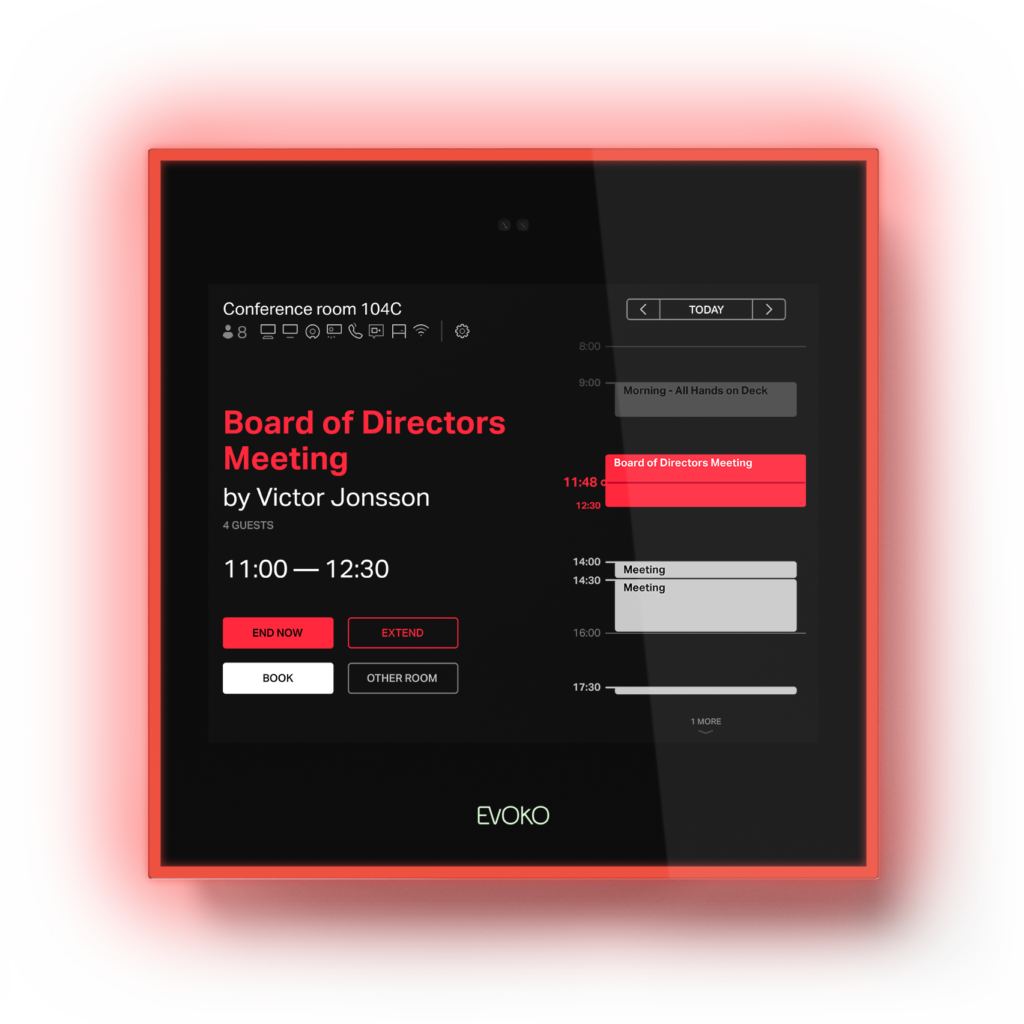

Red light indicate that the room is occupied.

intuitive user interface

Naso room manager has built in proximity sensor that unfolds a new layer of information as you approach the screen.

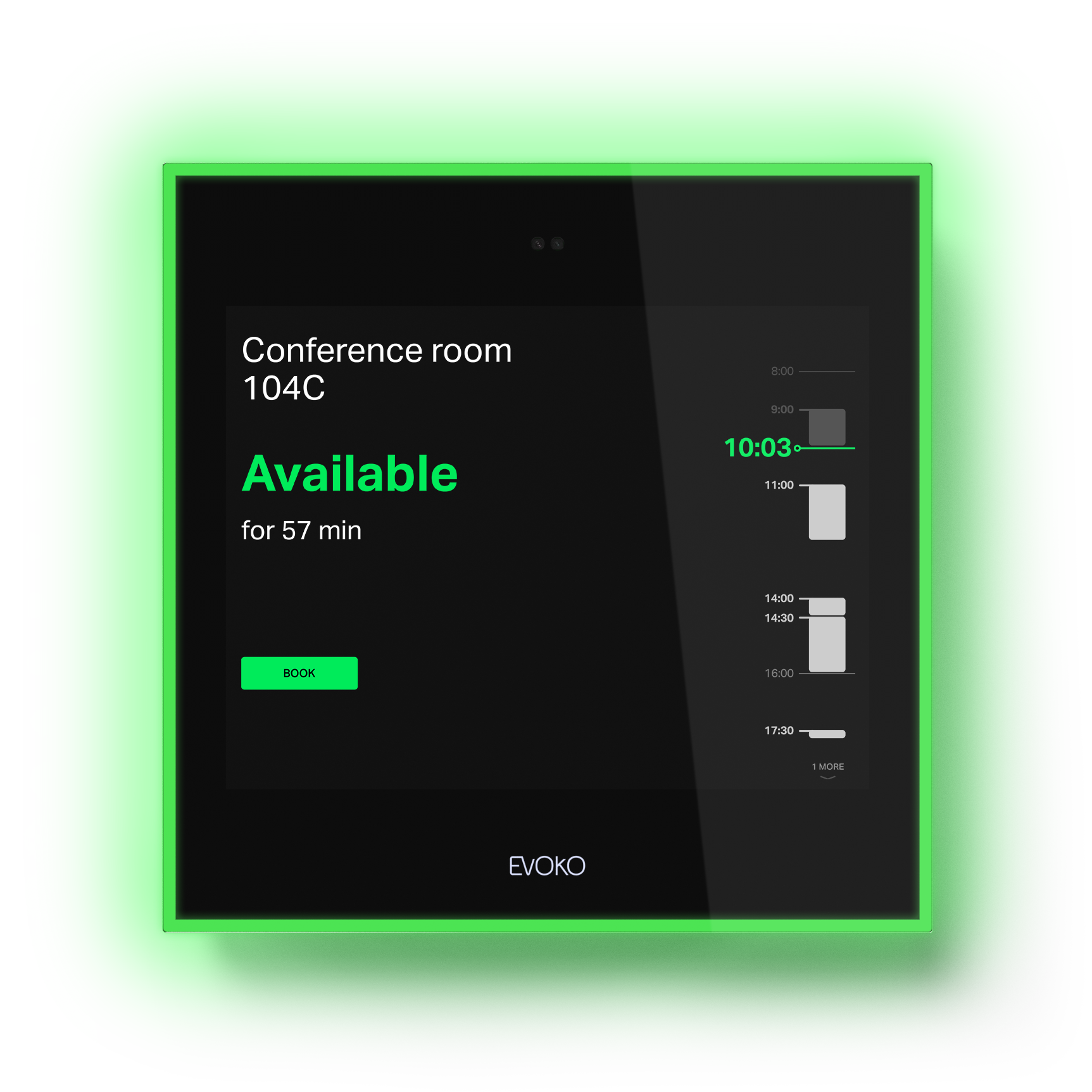

distant view
Room name, status and current time shown in a larger font.

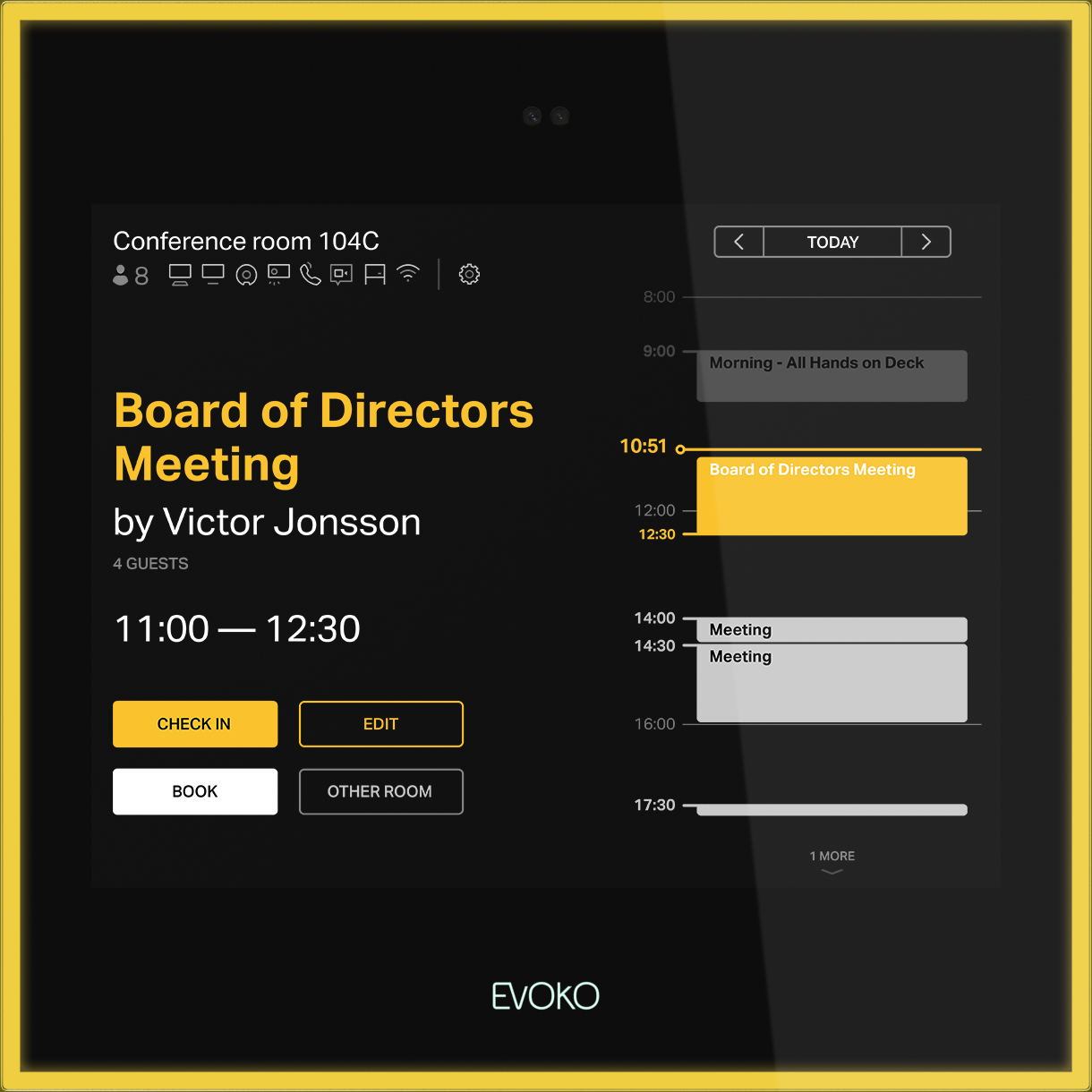

close view
Detailed view with access to action buttons.​

features

change language

Naso room manager provides multi language support, and adds possibility to easily switch device language during session.

equipment status

Report broken or missing meeting equipment to notifiy the person responsible through an automated email.

user authentication

Let users use a PIN code or scan a RFID tag to authenticate themselves

Features

change language

Naso room manager provides multi language support, and adds possibility to easily switch device language during session.

equipment status

Report broken or missing meeting equipment to notifiy the person responsible through an automated email.

user authentication

Let users use a PIN code or scan a RFID tag to authenticate themselves

Waiting

for

greatness

waiting

for

greatness

this is the heart of our cloud suite

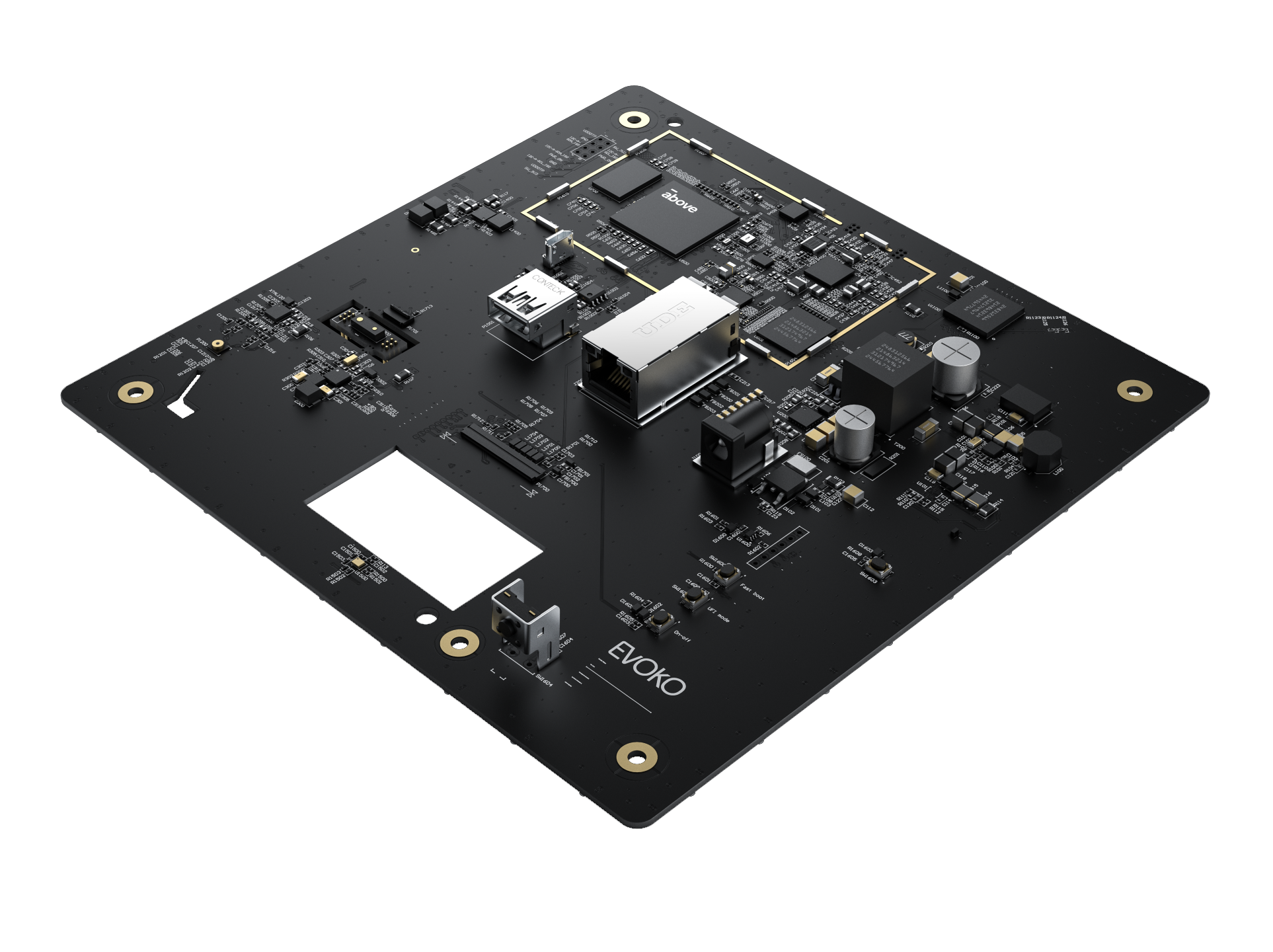

Dedicated hardware and software with enterprise grade security
Purpose built hardware enables a fast and realiable product
busy

doing

magic

Busy

doing

magic

find a reseller

Thanks to our fantastic partners we can offer local sales and support in more than 100 countries across six continents.

specification

NASO

ENX1001

Specifications

Ethernet
• 1000base-t/ 100base-tx/ 10base-te
Wifi
• 802.11b/g/n/ac 2.4ghz
Rfid
• NFCIP-1, NFCIP-2 protocol
• ISO/IEC 14443A, ISO/IEC 14443B PICC mode via host interface
• MIFARE PCD encryption mechanism (MIFARE 1K/4K)
• NFC Forum tag 1 to 4, (MIFARE Ultralight, Jewel, Open FeliCa tag MIFARE DESFire)
Bluetooth
• Bluetooth 4.2 (BLE)

• 8” LCD 4:3 1024×768
• Capacitive multi-touch

• Power over Ethernet, PoE RJ45
802.3at PD type 1 (13W)
• DC-Power
5VDC (DC-Power supply sold seperatly]

• Proximity sensor
• Ambient light sensor

• 5-way cabling
• Standard wall mount included in package
• Glass wall mount included in package

  • Arabic
  • Catalan
  • Chinese, Simplified
  • Chinese, Traditional
  • Czech
  • Danish
  • Dutch
  • English
  • Estonian
  • Finnish
  • French
  • Galician
  • German
  • Italian
  • Japanese
  • Latvian
  • Lithuanian
  • Norwegian
  • Polish
  • Portuguese
  • Russian
  • Spanish
  • Swedish
  • Product: 195 x 195 x 35mm [7.7 x 7.7 x 1.37in]
  • Retail Sales kit package: 290 x 290 x 73mm
  • Product: 0,9 kg [2 lbs]
  • Retail Sales kit package: 1,6 kg [3.6 lbs]
  • Microsoft Office 365

naso room manager

- a part of the cloud suite

With this solution you get it all. Top of the line room manager devices together with all the software for room and desk booking, as well as visitor management tools.
