Specifications

Evoko Kleeo Desk Manager

General

Model name:
Evoko Kleeo Desk Manager
Warranty:
Type:
Desk booking

Article numbers

Evoko Kleeo desk manager (1-pack):
910.1970.900
Evoko Kleeo desk manager (6-pack):
910.1972.900

Features

icons8-binoculars 1
See desk status from distance
icons8-toggle-on
Set focus mode
icons8-door-hanger 1
Book, end and extend reservations on device
icons8-online 1
Automatic check-in via sensors
icons8-foul 1
User identification with tags
icons8-checked-checkbox 1
On device check-in
icons8-warranty 1
24 month warranty
icons8-download-from-cloud-1.svg
Firmware updates (OTA)
icons8-graph-report-1.svg
Insights and analytics
icons8-online-support 1
Technical support

Connectivity

Wifi – Dual band
2.4GHz, 802.11 n 5.0 GHz, 802.11 n/ac
RFID
Mifare Classic tags

Display

Size:
2.05″ diagonal
Resolution:
256 x 65″
Type:
OLED, capacitive multi-touch

User interface languages

  • - Arabic
  • - Catalan
  • - Chinese
  • - Czech
  • - Danish
  • - Dutch
  • - English
  • - Estonian
  • - Finnish
  • - French
  • - Galician
  • - German
  • - Italian
  • - Japanese
  • - Latvian
  • - Lithuanian
  • - Norwegian
  • - Polish
  • - Portoguese
  • - Russian
  • - Spanish
  • - Swedish
  • - Ukrainian

Measurements and weights

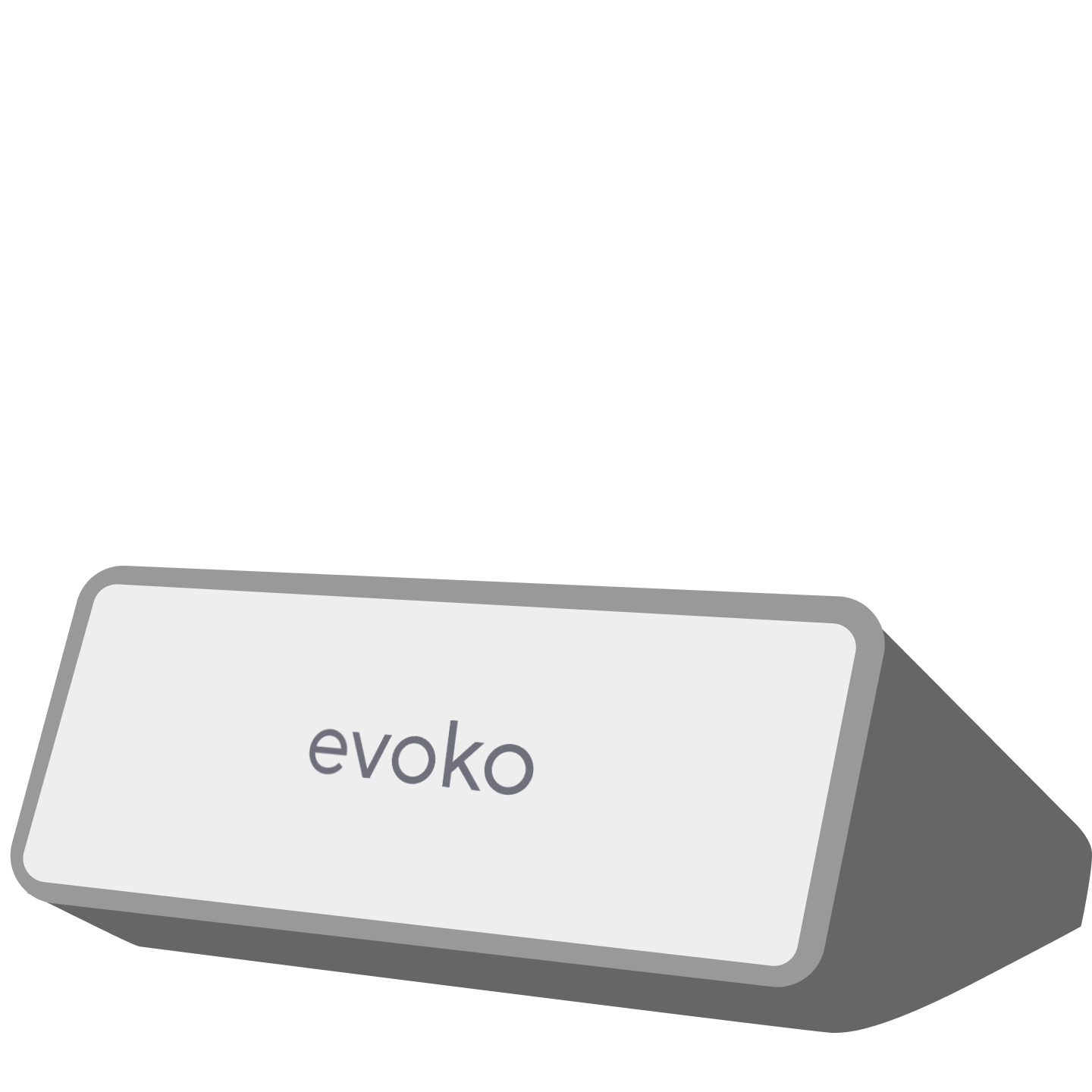

Kleeo-blueprint-002
Main unit
Width:
83 mm
(3.27 inches)
Height:
37 mm
(1.46 inches)
Depth:
68 mm
(2.68 inches)
Weight:
106 g
(0.23 lbs)

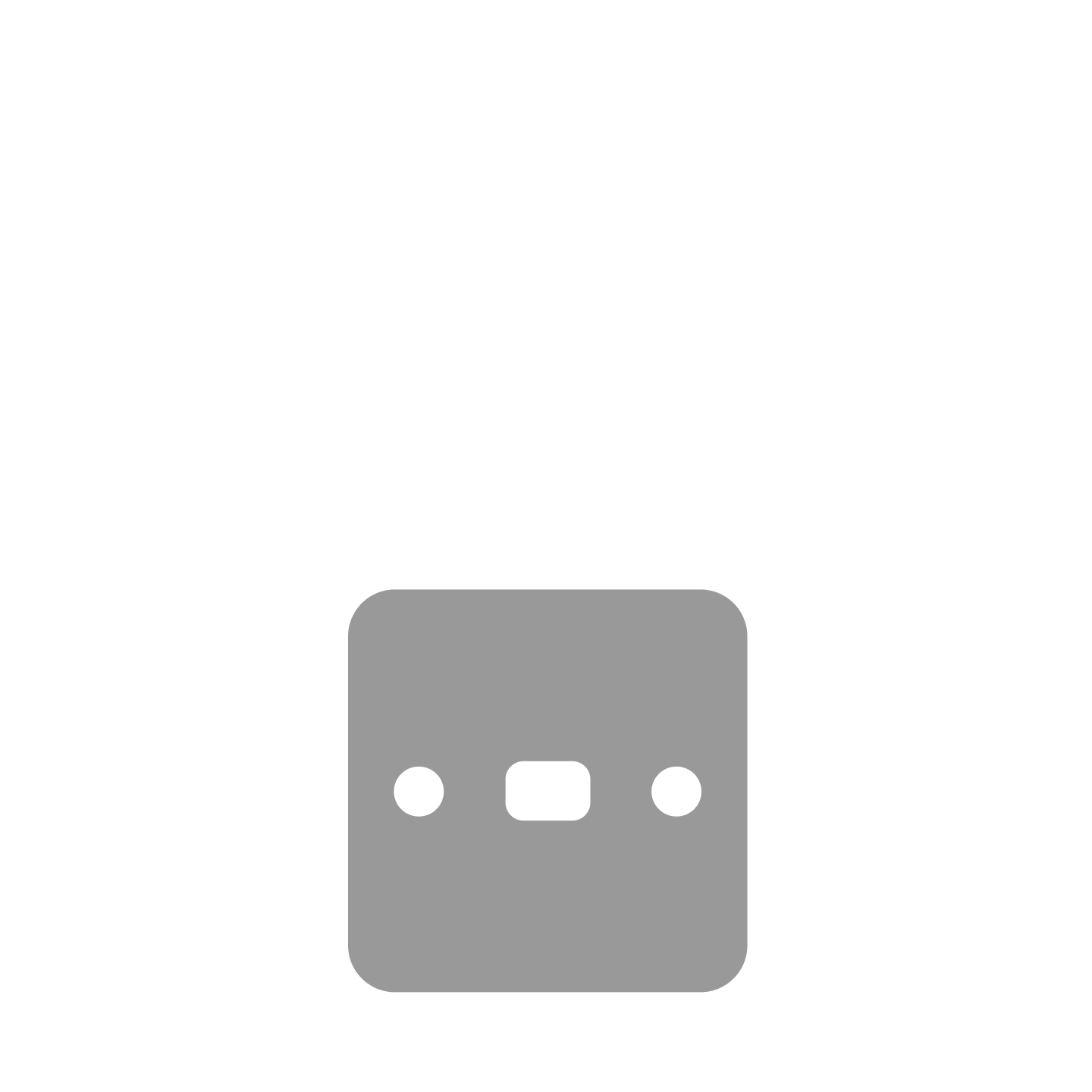

kleeo-blueprint-003
Sensor unit
Width:
40 mm
(1.6 inches)
Height:
40 mm
(1.6 inches)
Depth:
12 mm
(0.5 inches)
Weight:
13 g
(0.03 lbs)

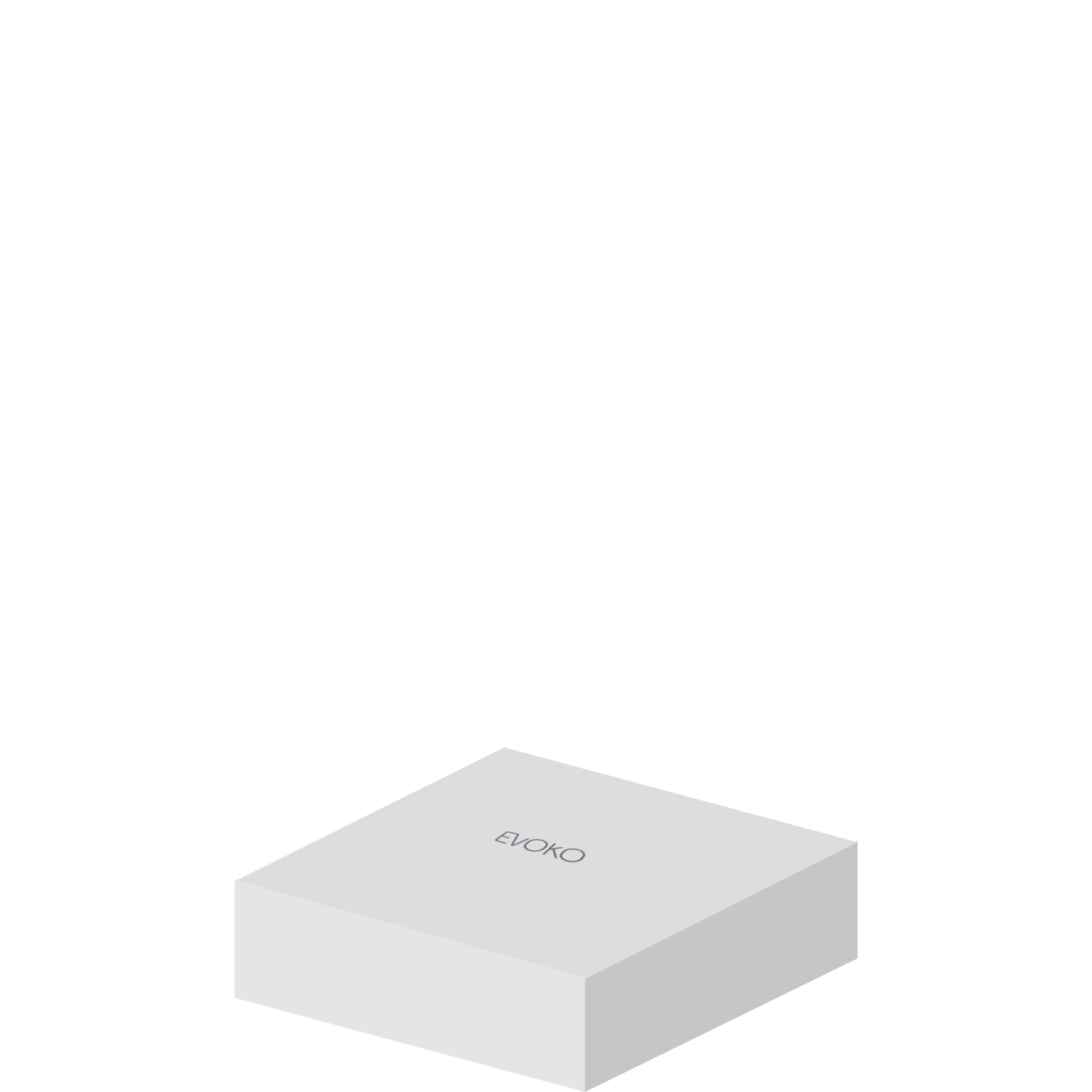

sales-kit-blueprint-004
Retail Sales kit package
Width:
145 mm
(5.7 inches)
Height:
95 mm
(3.7 inches)
Depth:
70 mm
(2.8 inches)
Weight:
200 g
(0.44 lbs)
Sales kit
Retail Sales kit package
Width:
290 mm
(11.4 inches)
Height:
290 mm
(11.4 inches)
Depth:
70 mm
(2.8 inches)
Weight:
1.15 kg
(2.54 lbs)

Mounting

Main unit
Placed on top of the desk, or mounted to the front edge of the desk.
Sensor unit
Mounted to the underside of the desk.

Power

Device power
Standard USB-C to USB-A 5.0V, 1A Max.
USB power
USB charger (AC/DC adapter) sold separately.
Single port: 1A Min, 5V max. No quick charging function.
Multiport: 1A Min./port, not shared. 5V max. No quick charging function.
USB-C to USB-A cable sold separately. Maximum 5m.

Sensors

Proximity sensor
Passive infrared sensor (PIR-sensor)

Sign-in options

Microsoft Office 365
Google Workspace
Apple ID
Email & password

Installation

Get help with the installation
The first step to get the Kleeo desk manager configured is to create a new Evoko Workplace Account. We have created step by step instructions to guide you through the process.

In the box

Main unit
Included
Desk stand
Included
Sensor unit
Included
x2 Cable tie
Included

Warranty and service

Evoko offers a standard three year warranty for all products from the date of purchase.
